ISO 4406 indexed hydraulic drive catalog
HYDAC Hydraulic Motors, Gears and Filtration for Pressure-Stable Machinery

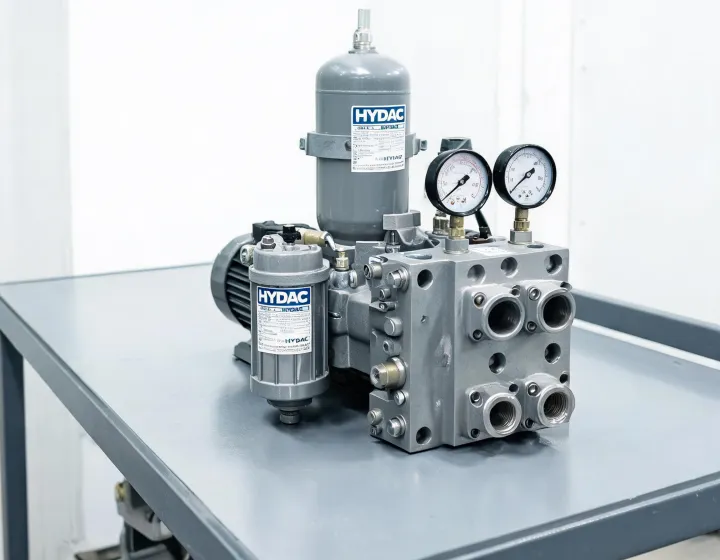

Build a compact bill of material around hydraulic motors, cartridge valves, gear pumps, filters and accumulators, all indexed by pressure stage, port pattern and cleanliness target.
Specification tabs
Pressure, flow and cleanliness data before a quote starts
| Pressure class | 160 / 250 / 315 / 420 bar documentation bands |
|---|---|
| Speed window | 400 - 3,600 rpm hydraulic motor selection range |
| Interface data | SAE flange, BSPP, metric ports and shaft option notes |
| Cleanliness target | ISO 4406 18/16/13, 17/15/12 and 16/14/11 references |
|---|---|
| Element range | 3 um, 5 um, 10 um and 25 um beta-rated filter elements |
| Monitoring | Differential pressure indicators with electrical switch options |
| Valve formats | Check, pressure relief, flow control and directional cartridge valves |
|---|---|
| Cavity references | Threaded cavity notes with torque values in Nm |
| Materials | Zinc-nickel plated steel and stainless options for mobile machinery |
Compact download list
Documents sorted by engineering task
Cleanliness first, not as an afterthought

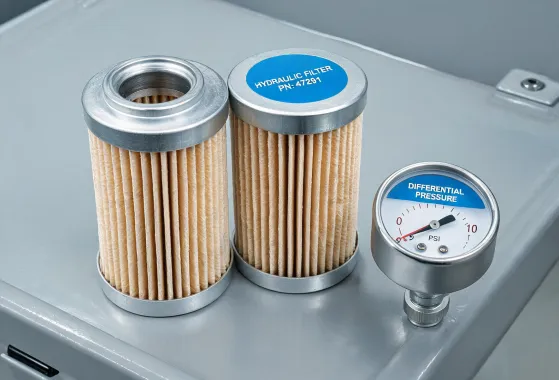

Every pump, motor and valve recommendation is checked against filter micron rating, differential pressure monitoring and ISO 4406 cleanliness goals so the drive package protects servo valves and bearings from early wear.

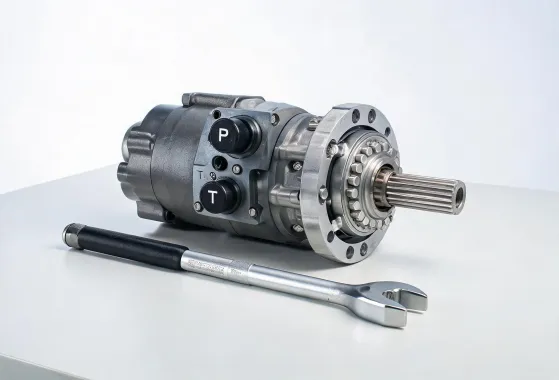

Hydraulic motor plus planetary gear interface notes
Specification sheets connect pressure, rpm and output torque with shaft pattern, mounting pilot, oil viscosity and service factor, reducing the back-and-forth that slows OEM release drawings.

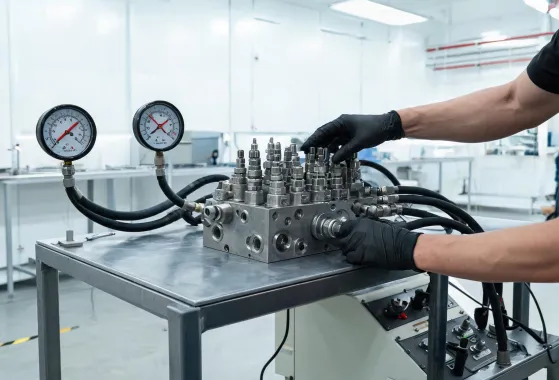

Cartridge valve catalog support with test evidence
Valve choices are tied to cavity, cracking pressure, flow range and test bench notes instead of generic part names, making replacement and new manifold design easier to audit.
RFQ support
Send the duty point and receive a pressure-stage document pack.
- Port, flange and shaft interface cross-check
- Filter and accumulator sizing notes by ISO 4406 target
- OEM review within 5 business days for custom packages
